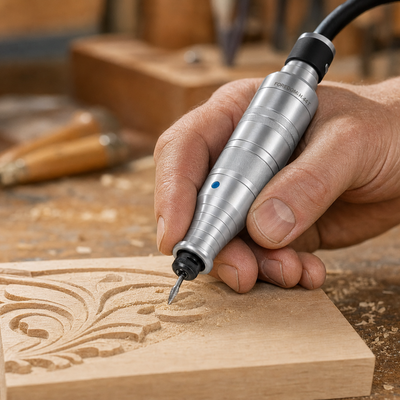

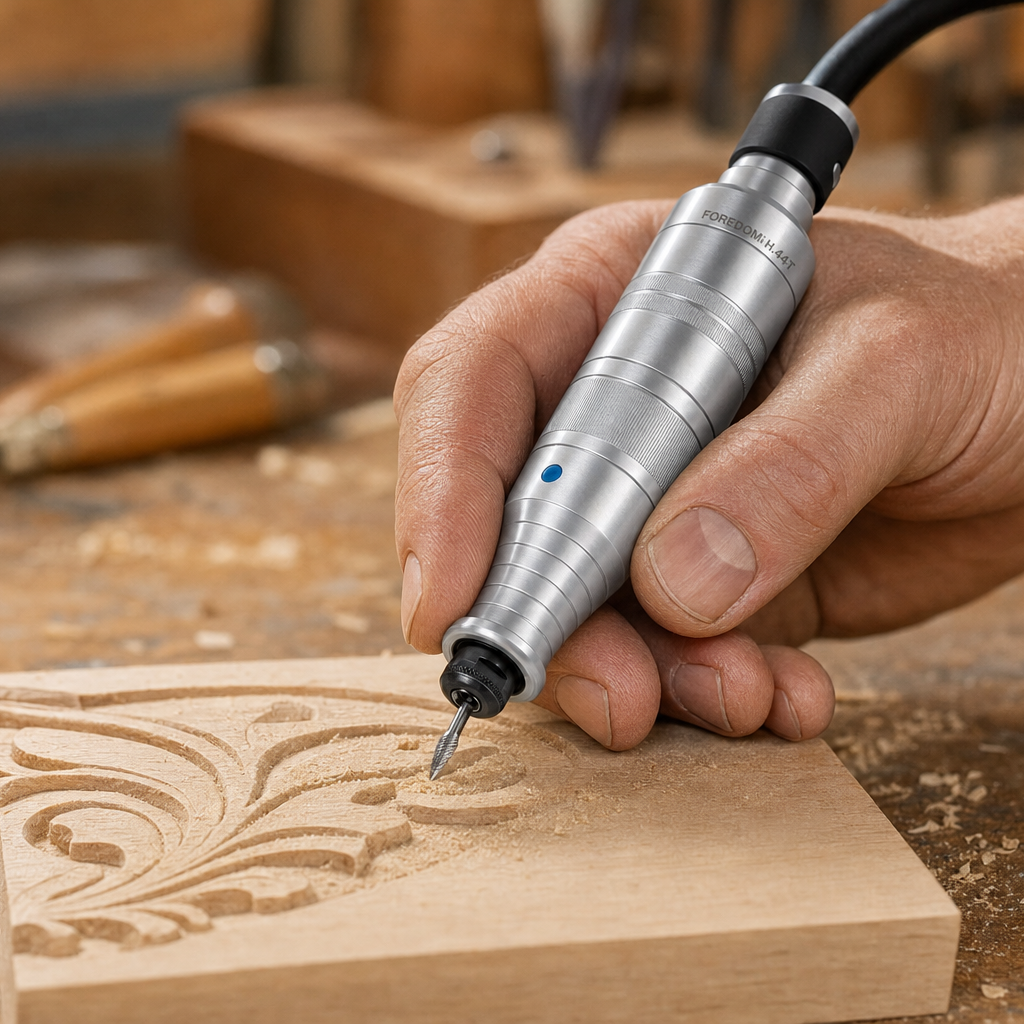

FOREDOM Handpiece, H.44T, General Use (H.44T)
C$126.00 C$148.00
Additional payment options available at checkout.
C$126.00 C$148.00
About FOREDOM Handpiece, H.44T, General Use (H.44T)
The Foredom H.44T is a collet-style, key tip handpiece for use with Foredom flexible shaft machines. It is the standard choice for woodcarvers and craftspeople who work with large-shank burs, accepting shanks up to 1/4". Three collets and a pin-and-wrench tool are included.
What's in the Box
- H.44T handpiece
- HP442 collet — 3/32" (2.35 mm)
- HP443 collet — 1/8" (3.18 mm)
- HP447 collet — 1/4" (6.14 mm)
- Pin and wrench tool (HP103117)
Key Features
- Tapered body — 1" diameter at center, 3/4" at the tip — for balanced, pencil-style grip
- Precision collet chuck accepts 3/32", 1/8", and 1/4" shank accessories
- Prelubricated ball bearings — no oiling required
- Self-aligning keyway snap-lock connection to flex shaft
- Quick collet change with included pin and wrench
- Compatible with MAHH-30 bench-mount handpiece holder
- Made in USA
Specifications
| SKU | H.44T |
| Connection type | Key tip (keyway snap-lock) — key tip shaft only |
| Overall length | 5-5/8" (142 mm) |
| Body diameter — center | 1" (25.4 mm) |
| Body diameter — taper | 3/4" (19 mm) |
| Weight | 5.85 oz (165.8 g) |
| Package weight | 8.6 oz (243.8 g) |
| Package dimensions | 6.625 × 1.5 × 1.5 in |
| Included collets | HP442 (3/32"), HP443 (1/8"), HP447 (1/4") |
| Lubrication | None — prelubricated ball bearings |
| Warranty | 90 days |
| Manufacturer | Foredom Electric Co. / Blackstone Industries, LLC — Bethel, CT USA |
Included Collet Sizes
| Part No. | Imperial | Metric | Typical Use |
|---|---|---|---|
| HP442 | 3/32" | 2.35 mm | Small burs, fine detail work |
| HP443 | 1/8" | 3.18 mm | General-purpose burs |
| HP447 | 1/4" | 6.14 mm | Large woodcarving burs |
Additional collet sizes available separately: HP444 (5/32"), HP445 (3/16"), HP448 (3 mm), HP449 (6 mm). The HP440 set includes all sizes for this handpiece.
Attaching to Your Flex Shaft
- Confirm the flexible shaft tip extends 3/4" beyond the end of the sheath. Adjust via the set screw in the motor connector if needed.
- Connect the motor to the speed control and plug in. Briefly turn on at half speed, then turn off — the inner key tip will still be rotating for a moment.
- While the key tip is still spinning, hold the outer sheath tip upward and push the handpiece onto it with one firm motion until it snaps into place. The keyway self-aligns automatically.
- Insert an accessory, tighten the collet, and run at low speed to confirm smooth rotation.
- To remove: unplug the machine first, then pull the handpiece off with a firm grip.
Changing Collets
- Insert the provided pin through the pilot hole and spindle hole to lock the spindle.
- Use the wrench to turn the chuck nut counterclockwise and remove it.
- Pull out the old collet (pliers can help) and slip in the new one.
- Replace the chuck nut and tighten with the wrench. Do not over-tighten.
- Remove the pin and pull on the accessory to confirm a secure hold.
Always match the accessory shank size to the collet. Using a shank that is too small or too large will damage the collet permanently.
Compatible Accessories & Spare Parts
| Part No. | Description |
|---|---|
| HP440 | Complete collet set — all sizes for H.44T (3/32" through 6 mm) |
| HP103117 | Replacement pin and wrench set |
| MAHH-30 | Bench-mount handpiece holder — clamps to benches up to 2-1/4" thick, height-adjustable, 360° swivel |
| HP444 | 5/32" collet (sold separately) |
| HP445 | 3/16" collet (sold separately) |
| HP448 | 3 mm collet (sold separately) |
| HP449 | 6 mm collet (sold separately) |
Safety
- Eye protection: Always wear safety glasses or a face shield during operation.
- Dust: Use dust collection or a respirator to avoid inhaling particles.
- Clothing: No loose clothing, jewelry, or unsecured hair near the tool.
- Accessories: Never use a bent, damaged, or out-of-balance accessory.
- Maintenance: Always unplug before changing collets or cleaning.
- No lubrication: Do not oil this handpiece — it will damage the prelubricated bearings.
Warranty & Support
The H.44T is covered by a 90-day limited warranty against defects in materials and workmanship from the date of purchase. Foredom will repair, replace, or refund the product at their discretion. Does not cover damage from misuse, accidents, or normal wear.
