Pepetools first introduced a leading line of plating equipment nearly 20 years ago. Every product cycle in this line trumps the previous version by setting a new milestone. This plating system is one of a kind, "CE" certified and Patent Pending internal architecture designed and engineered by Pepetools in the USA!
This product is also available fully calibrated with a certificate - if you would like calibration services please contact us for more information.

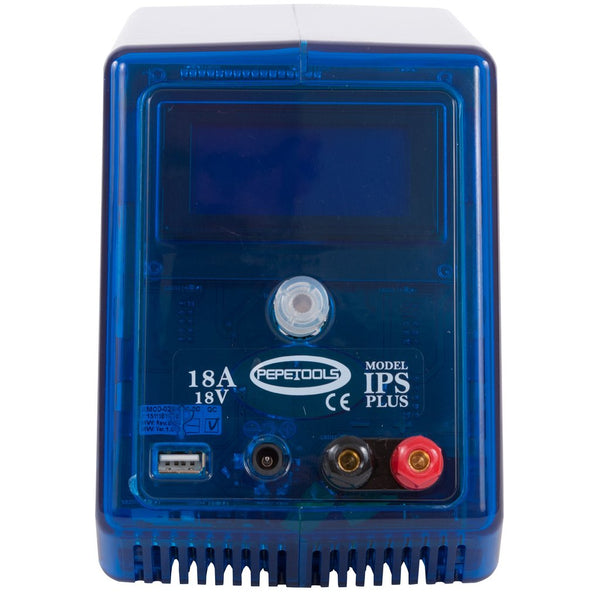

IPS Intelligent Plating System is available in the following configurations;
- 10A/12V
- 18A/18V
- 25A/12V
Each amperage/voltage configuration is available with with the following features;
- IPS - LITE
- Fully Digital Display
- One Button Reverse Polarity
- Dual Voltage 110/220V
- Auto Short Protection
- IPS - PLUS
- All of the features of the IPS - LITE
- Fully programmable features such as
- Plating voltage and amperage
- Time to plate (from 1 second to 9 hours and 59 minutes)
- Reverse polarity time
- Integrated Amp Hour counter
- Storage space for 5 individual programs
- Each program can store parameters such as;
- Plating Time
- Reverse Polarity Time
- Current Voltage
- Current Amperage
- Start Delay
- Sequential Programming
- Set each program (1-5) in order, or any order to run sequentially. Great for large scale operations.
- IPS - PRO
- Combines the features of the IPS - LITE & IPS - PLUS
- Solution Coil Heater that fits into a 1000ML Beaker
- Fully programmable heat in either degrees Fahrenheit or Celsius
- Accurate up to +/- 1 degree C/F
- All in one system that is perfect for rhodium and all other types of plating
Check out the PDF on a customers results during the Copper Via Fill Process
