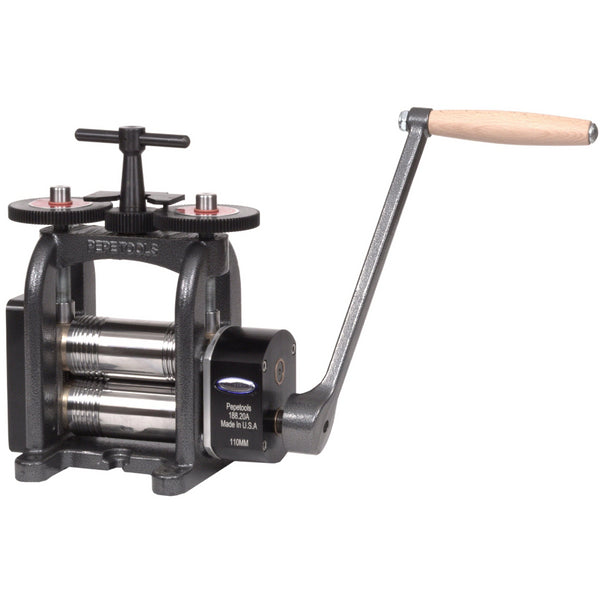

110MM Combination Ultra Mill with Ductile Frame

SKU: 188.20A
Regular price
$735.00
Sale price
$735.00
Regular price
$0
Sold out
Unit price
Quantity must be 1 or more

  • Gear ratio 4:1
  • Roller width - 110mm
  • Roller diameter - 55mm
  • Maximum opening - 5mm
  • Flat area (+/- 0.01mm) - 57mm
  • Square wire (+/- 0.01mm) : 1.0, 2.0, 3.0, 4.0
  • Ring shank - half round ellipsis: 2.5 x 1:3 x 1.25 ; 4 x 1.5
  • Capable of producing metal foil as thin as .001"
  • All models equipped with 4:1 reduction gear box
  • Custom designed heavy duty packaging
  • Precision hobbed gears from solid steel - no casted gears
  • High strength housing
  • Custom designed maintenance free bronze bushings
  • Induction hardened in strategic areas to 65HRC hardness
  • Polished and machined rolls to achieve a mirror finish

We have started utilizing a unique hardening procedure which allows us to market superior rollers that will perform beautifully. Our rollers are made from a high quality carbon steel alloy that offers excellent wear resistance and the outer 3mm of the rolls are hardened to 65 HRC for superior deformation resistance.
