UltraMelt Induction Melter, 5kg Gold, 1kg Platinum
$10,000.00
Additional payment options available at checkout.
You might also need
$10,000.00
About UltraMelt Induction Melter, 5kg Gold, 1kg Platinum

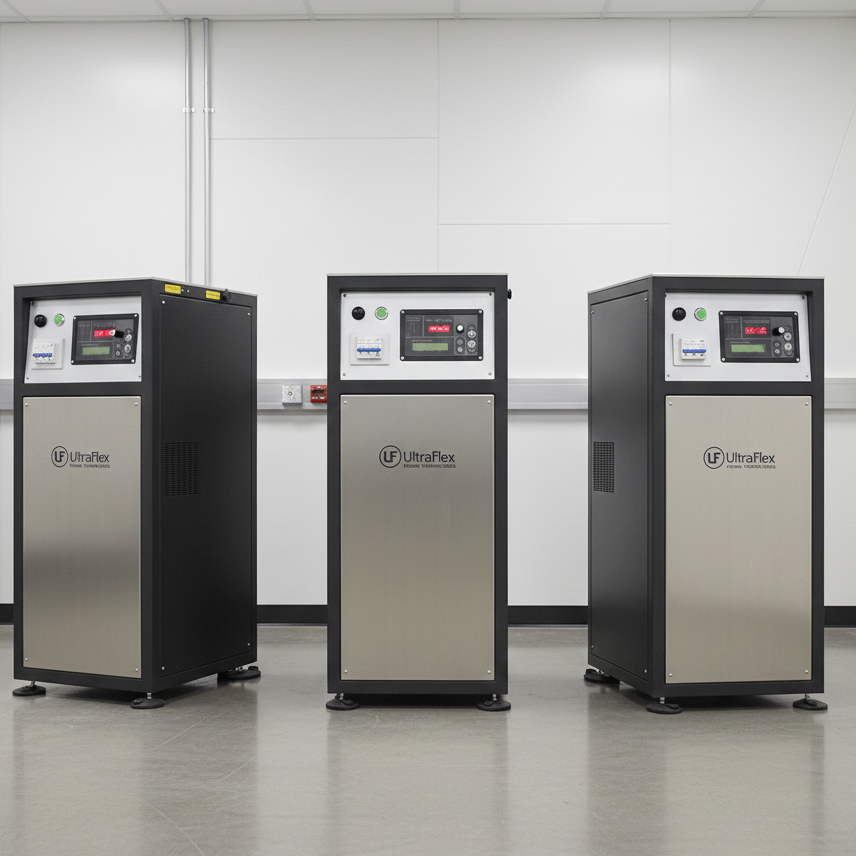

UltraMelt 4/5 Induction Melting Furnace
The UltraMelt 4/5 series by UltraFlex Power Technologies provides high-performance, digitally controlled induction melting solutions ideal for precious and non-precious metals. Engineered for efficiency and precision, these static induction melting systems are perfect for jewelry manufacturing, dental labs, and industrial casting environments.
Key Features & Benefits
- Fast Induction Melting: Utilizes an advanced circuit design to achieve rapid melting with low energy consumption.
- Precise Digital Control: Features advanced digital controls for service, diagnostics, and high process repeatability.
- Adjustable Power Regulation: Easily regulate power from 10% to 100% using the integrated power bar-graph indicator.
- Advanced Temperature Management: Includes a built-in temperature controller that works with a standard thermocouple probe or an optional IR pyrometer to prevent metal overheating.
- Durable Design: Constructed with a stainless steel front and a high-temperature top cover to withstand prolonged heavy-duty use.
- Ease of Use: Reliable equipment that is easy to install, maintain, and service.
Technical Specifications
The UltraMelt 4/5 is available in three configurations to meet specific material and capacity requirements:
| Specification | UM-4G (Gold) | UM-5G (Gold) | UM-5P (Platinum) |
|---|---|---|---|
| Max Absorbed Power | 5 kW | 5 kW | 5 kW |
| Max Melting Temp | 1300°C | 1300°C | 2000°C |
| Crucible Capacity | 4 kg Gold | 5 kg Gold | 600 g Platinum |
| Crucible Volume | 280 cm³ | 562 cm³ | 291 cm³ |
| AC Line (1 Phase) | 230V ± 10% (50/60Hz) | ||
| Weight | 56 kg (123 lb) | ||
| Dimensions (LxWxH) | 46 cm x 40 cm x 95 cm (18.1” x 15.7” x 37.4”) | ||
Installation & Cooling Requirements
This system requires an external water cooling source to maintain optimal operating temperatures.
- Min Water Flow: 2.0 L/min (0.5 GPM).
- Differential Pressure: Minimum 3 Bar (45 PSI).
- Max Input Pressure: 6 Bar (90 PSI).
- Max Inlet Water Temp: 35°C.
Optional Equipment
- IR Temperature Sensor (TS-05): Infrared sensor with stand for non-contact temperature monitoring.
- Argon Gas Dispenser (CA-02): Enables melting under an inert gas atmosphere.
- 3-Phase Transformer: Optional upgrade for facilities with 3-phase/230V AC line requirements.
Note: Custom water cooling systems can be quoted upon request.
UltraMelt 4/5 Induction Melting Furnace
The UltraMelt 4/5 series by UltraFlex Power Technologies provides high-performance, digitally controlled induction melting solutions ideal for precious and non-precious metals. Engineered for efficiency and precision, these static induction melting systems are perfect for jewelry manufacturing, dental labs, and industrial casting environments.
Key Features & Benefits
- Fast Induction Melting: Utilizes an advanced circuit design to achieve rapid melting with low energy consumption.
- Precise Digital Control: Features advanced digital controls for service, diagnostics, and high process repeatability.
- Adjustable Power Regulation: Easily regulate power from 10% to 100% using the integrated power bar-graph indicator.
- Advanced Temperature Management: Includes a built-in temperature controller that works with a standard thermocouple probe or an optional IR pyrometer to prevent metal overheating.
- Durable Design: Constructed with a stainless steel front and a high-temperature top cover to withstand prolonged heavy-duty use.
- Ease of Use: Reliable equipment that is easy to install, maintain, and service.
Technical Specifications
The UltraMelt 4/5 is available in three configurations to meet specific material and capacity requirements:
| Specification | UM-4G (Gold) | UM-5G (Gold) | UM-5P (Platinum) |
|---|---|---|---|
| Max Absorbed Power | 5 kW | 5 kW | 5 kW |
| Max Melting Temp | 1300°C | 1300°C | 2000°C |
| Crucible Capacity | 4 kg Gold | 5 kg Gold | 600 g Platinum |
| Crucible Volume | 280 cm³ | 562 cm³ | 291 cm³ |
| AC Line (1 Phase) | 230V ± 10% (50/60Hz) | ||
| Weight | 56 kg (123 lb) | ||
| Dimensions (LxWxH) | 46 cm x 40 cm x 95 cm (18.1” x 15.7” x 37.4”) | ||
Installation & Cooling Requirements
This system requires an external water cooling source to maintain optimal operating temperatures.
- Min Water Flow: 2.0 L/min (0.5 GPM).
- Differential Pressure: Minimum 3 Bar (45 PSI).
- Max Input Pressure: 6 Bar (90 PSI).
- Max Inlet Water Temp: 35°C.
Optional Equipment
- IR Temperature Sensor (TS-05): Infrared sensor with stand for non-contact temperature monitoring.
- Argon Gas Dispenser (CA-02): Enables melting under an inert gas atmosphere.
- 3-Phase Transformer: Optional upgrade for facilities with 3-phase/230V AC line requirements.
Note: Custom water cooling systems can be quoted upon request.
Frequently Asked Questions
What is the maximum power consumption of this unit?
The UltraMelt 4/5 has a maximum absorbed power of 5kW.
Is this a static or centrifugal melting system?
The UltraMelt is a static induction melting system.
What are the cooling water requirements?
To operate safely, the system requires a minimum water flow of 2.0 L/min (0.5 GPM). The cooling water must have a minimum differential pressure of 3 Bar (45 PSI) and a maximum input pressure of 6 Bar (90 PSI).
Can I monitor the temperature without touching the metal?
Yes. While the unit comes standard with a thermocouple probe, an infrared (IR) sensor is available as an optional upgrade for non-contact temperature monitoring.
What materials can I melt with this furnace?
These furnaces are designed for both precious and non-precious metals and alloys. Specific configurations are available for gold (up to 5kg) and platinum (up to 600g).
