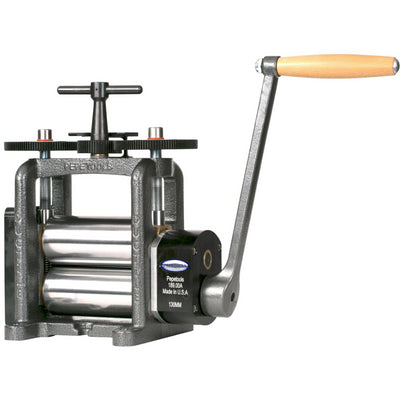

130 mm Flat Ultra Mill with Ductile Frame

130 mm Flat Ultra Mill with Ductile Frame

189.00A

Regular price MSRP: $688.00

  • Gear ratio 4:1
  • Roller width - 130mm
  • Roller diameter - 65mm
  • Maximum opening - 5mm
  • Flat area (+/- 0.01mm) - 130mm
  • Capable of producing metal foil as thin as .001"
  • All models equipped with 4:1 reduction gear box
  • Custom designed heavy duty packaging
  • Precision hobbed gears from solid steel - no casted gears
  • High strength housing
  • Custom designed maintenance free bronze bushings
  • Induction hardened in strategic areas to 65HRC hardness
  • Polished and machined rolls to achieve a mirror finish

    We have started utilizing a unique hardening procedure which allows us to market superior rollers that will perform beautifully.Our rollers are made from a high quality carbon steel alloy that offers excellent wear resistance and the outer 3mm of the rolls are hardened to 65 HRC for superior deformation resistance.
