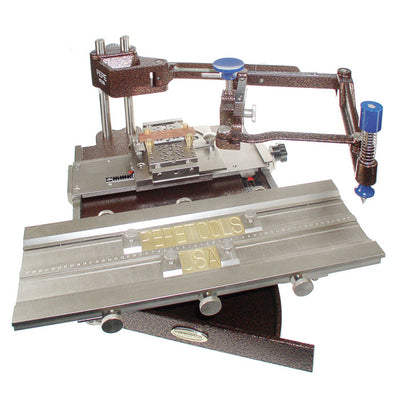

Horizontal Engraving Machine

Availability: In stock

No. Product
157.50N Horizontal Engraving Machine with Type
157.00N Horizontal Engraving Machine without Type

Double Tray Holding Table. Engraves bracelets, watches, charms, lighters, pens and anything else that is either flat or semi curved

Save time by setting up two lines of text to be engraved.

  • Engraves letters (smallest- 3/32", largest- 1/4")
  • Premium diamond stylus
  • "Quick slide" female vise will hold plates up to 4" circular or rectangular
  • 15 different pantagraph ratios from 2 1/2" :1 to 6:1
  • Vise rotates a full 360 degrees with stops at every 45 degree increment
  • Set of 4 brass male pins to fit into female vise assembly
  • Adjustable combination type slide accommodates both large 2 3/4" and small 1 1/4" blanks
  • Height adjustment up to 4 1/2".
  • Shipping weight 27lbs
